Keyfeatures

Factsheet

Mobile / Cellular

1x LTE, UMTS, GSM

SIM

1x Micro SIM / 1x eSIM chip (on request)

Ethernet

1x Fast Ethernet

USB

USB 2.0 Host

Positioning

Multi-GNSS

Operation Temperature

-40 °C to +70 °C

Software

Routing, Network Services, VPN, Firewall, Link Management, Supervisor, SDK, free updates

Compliance

CE (RED), Vehicle (UNECE-R10, UNECE-R118)

Modularity

Extensions on request

Description

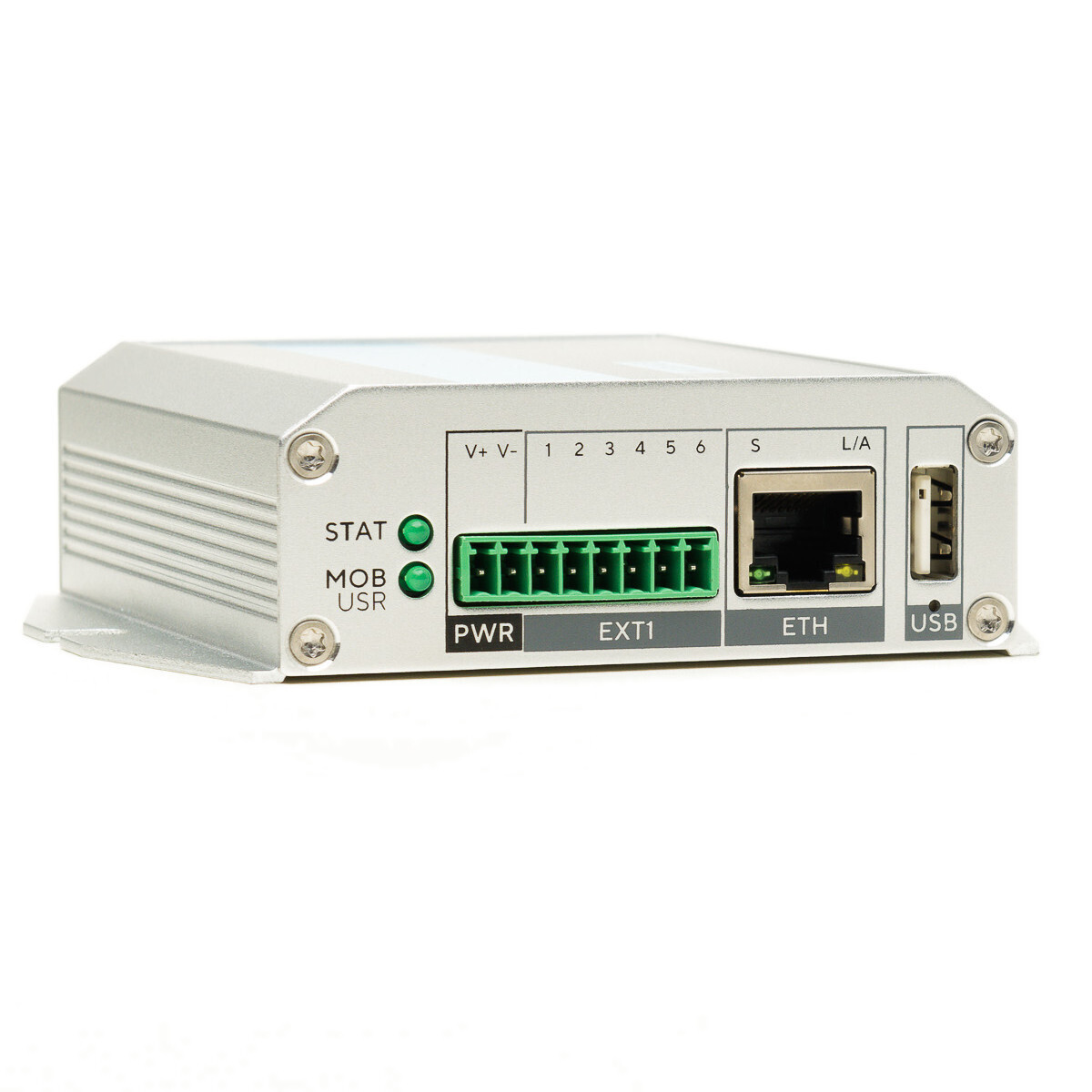

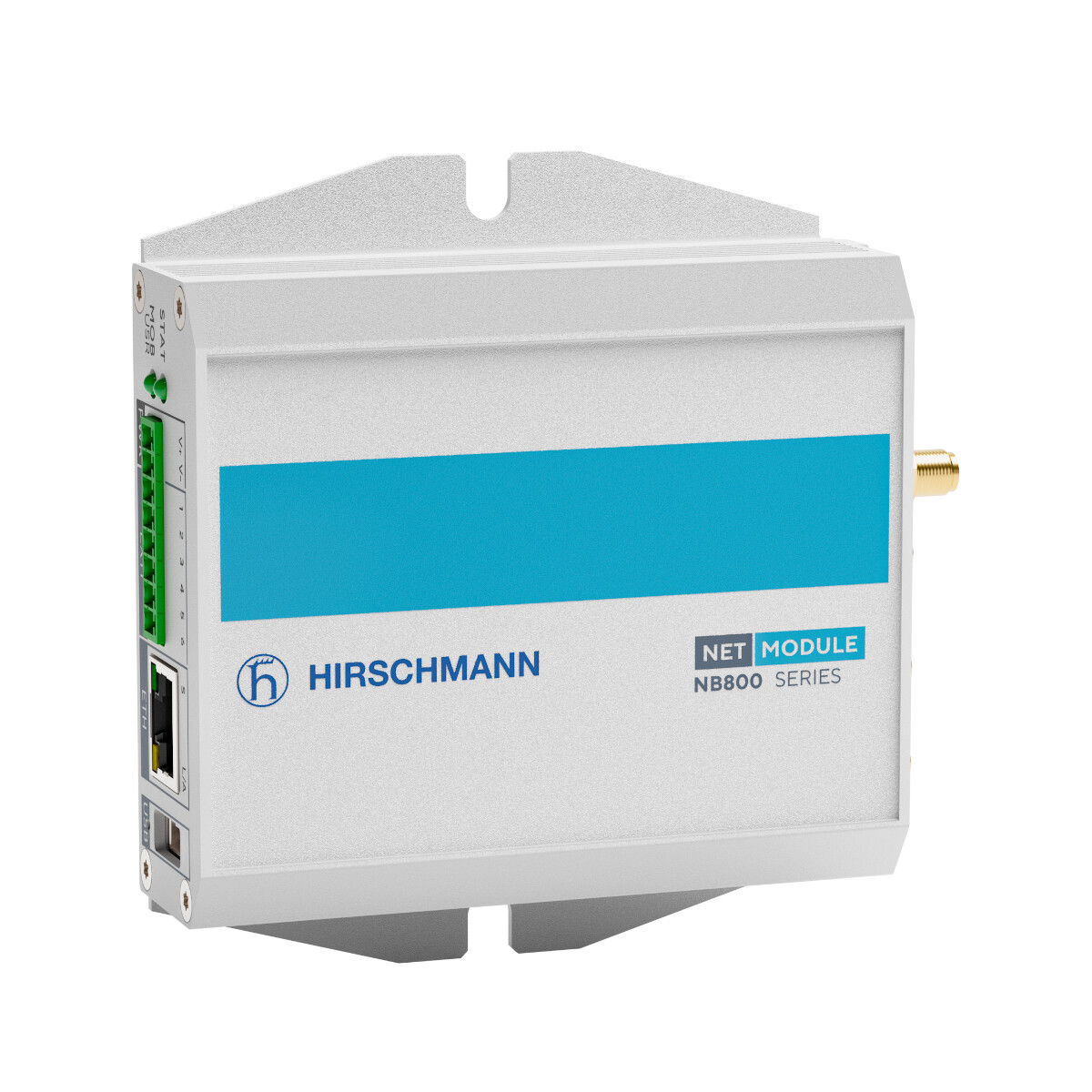

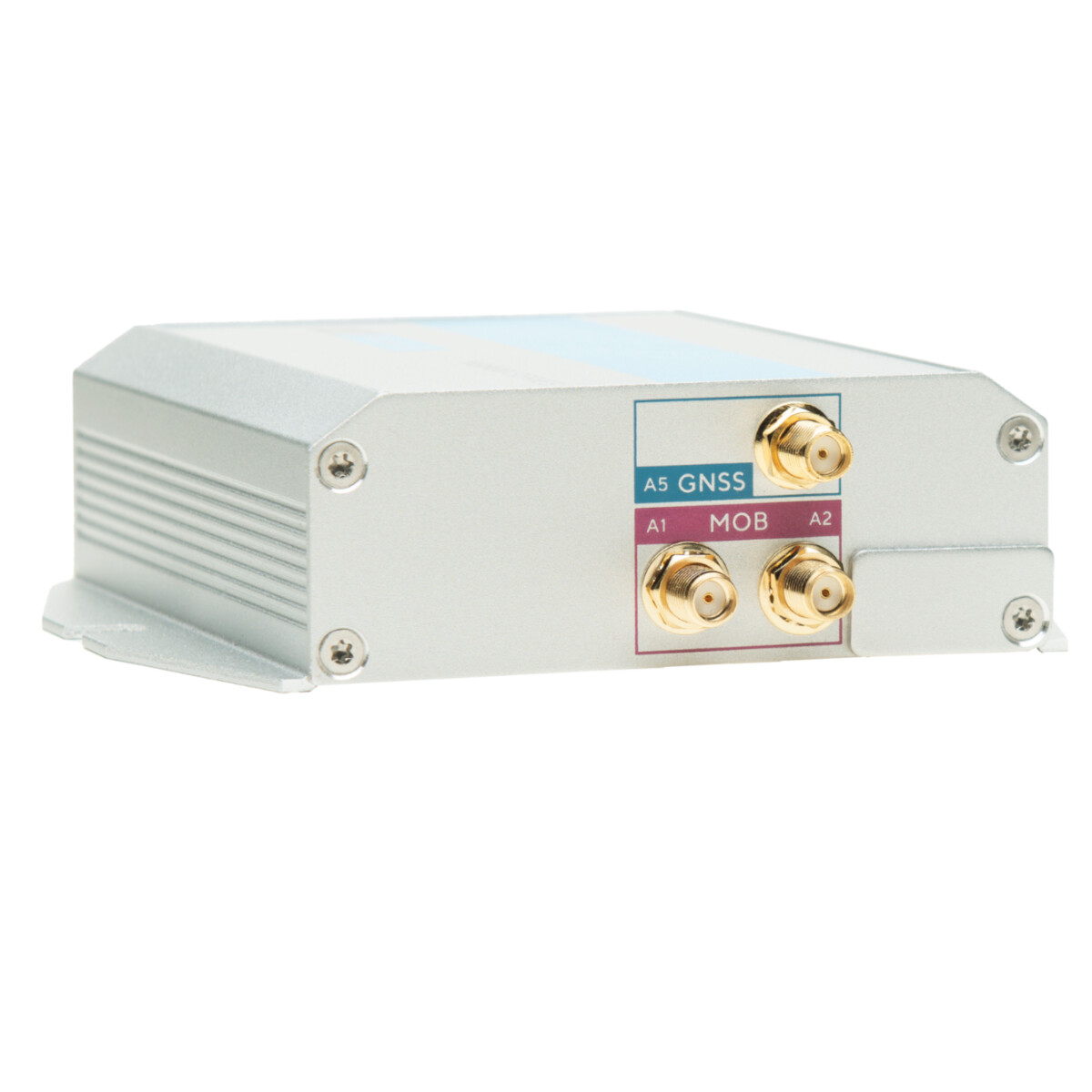

The compact NB800 is the cost-effective solution for a robust on-board Internet connection in vehicles. Its modular design supports a wide range of protocols for the rapidly spreading Internet of Things (IoT). Its features include an LTE module for vehicle-ground communication, GNSS for positioning and an Ethernet port.

The router also meets UNECE-R10 (E-Mark) regulation and can therefore be used in busses and other road vehicles, even under tough operating conditions. This, combined with its versatile features, makes it the ideal device for applications such as Passenger-Infotainment, Agriculture and Ticketing.

The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite. Customer specific software extensions may be implemented via a sophisticated SDK or Linux containers (LXC).

Applications

Emergency Services Smart Traffic CCTV Tracking Voice Communication Ticketing CCTV Fleet Management
